Ergo Max Ti Vario 2 Loupes

Home
Surgical loupes
Ergo Max Ti Vario 2 Loupes

Ergo Max Ti Vario 2 Loupes

You’ll need to LOGIN to place an order.

If you don’t already have an account, you can create one HERE. It will take about a minute and you’ll be able to place your order straight away – There’s no waiting, phone calls or arduous paperwork required!

Brand: LumaDent

Category: Surgical loupes

Collections:

Description

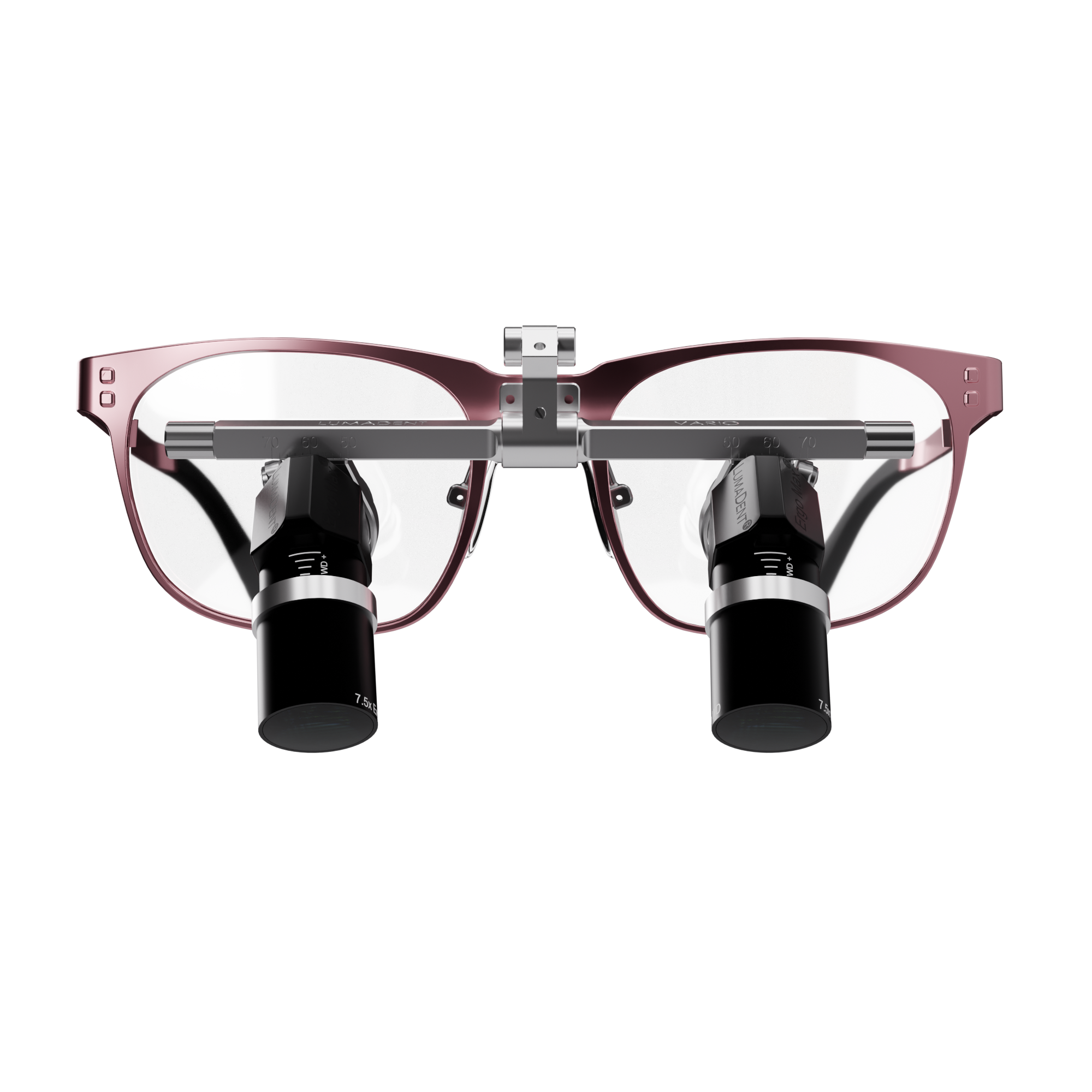

When precision defines your work, the next-generation Ergo Max Ti Loupes set a new benchmark for surgical-level clarity. Now available in 5.0x and 7.5x magnifications, the updated Ergo Max delivers exceptional visual fidelity for clinicians who demand accuracy down to the finest detail — from microsurgery to advanced endodontics and restorative procedures.

Featuring refined Vario WD™ Technology, the Ergo Max Ti offers enhanced depth of field and an expanded adjustable working distance, allowing effortless focus and flexibility across every procedure. Despite its higher magnification, it maintains one of the widest fields of view in its class, reducing the need for repositioning and supporting a smooth, uninterrupted workflow.

Engineered for balance and endurance, the redesigned optical housing optimizes weight distribution for all-day comfort and stability. Each pair is handcrafted in the USA using upgraded materials, precision-ground optics, and advanced coatings — ensuring superior clarity, ergonomic performance, and long-term durability.

The Ergo Max Ti Vario 2 takes adaptability even further, with fully adjustable IPD and declination angle powered by advanced Vario™ Technology. It enables seamless focus transitions and unmatched flexibility, giving clinicians complete control and comfort throughout every procedure.

Specifications

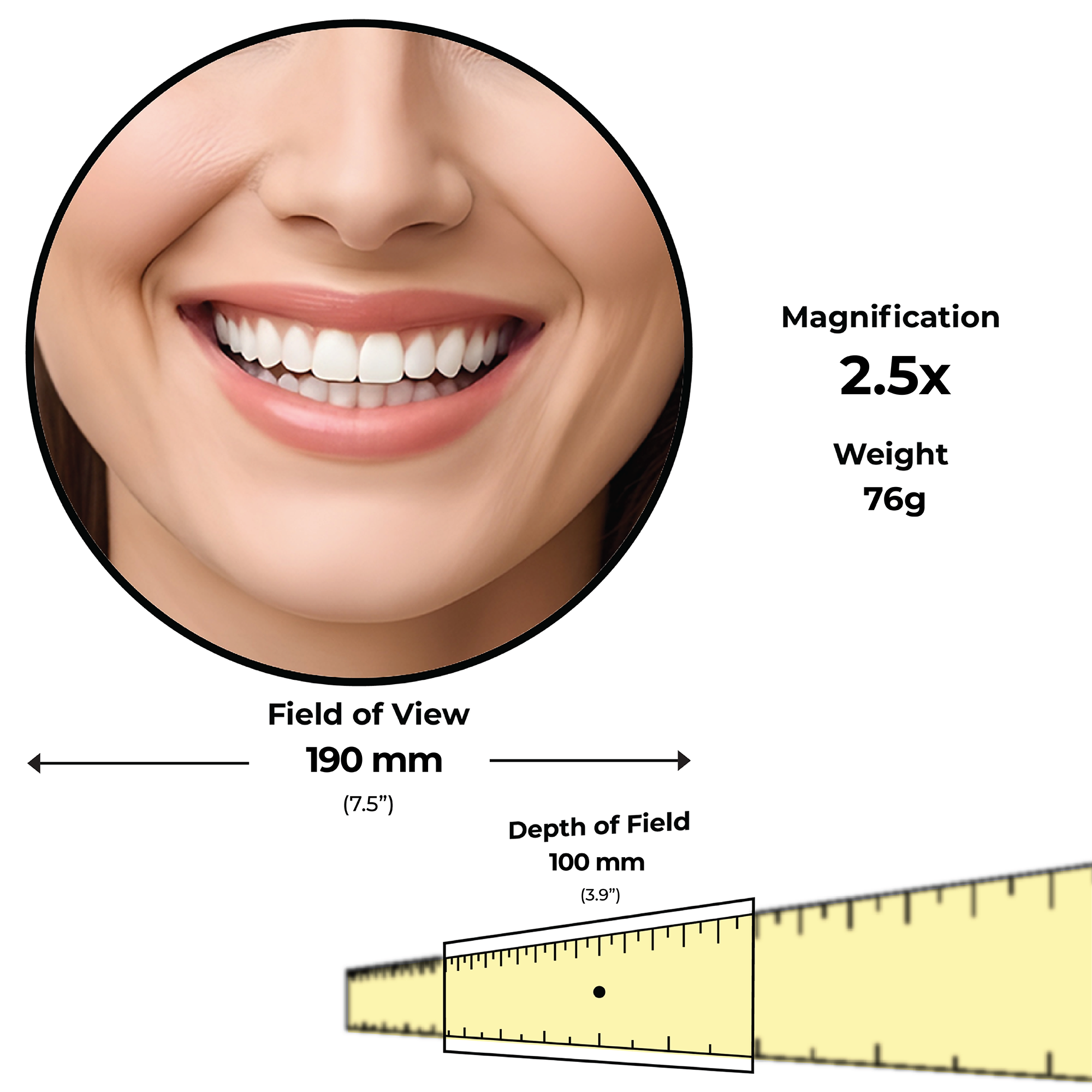

2.5x Magnification

Field of View (at 21"): 190 mm (7.5")
Depth of Field (at 21"): 100 mm (3.9")
Vario WD™: Yes
Weight (Carbon 3 Petite Frame): 76 g
Weight (Classic Frame): 89 g

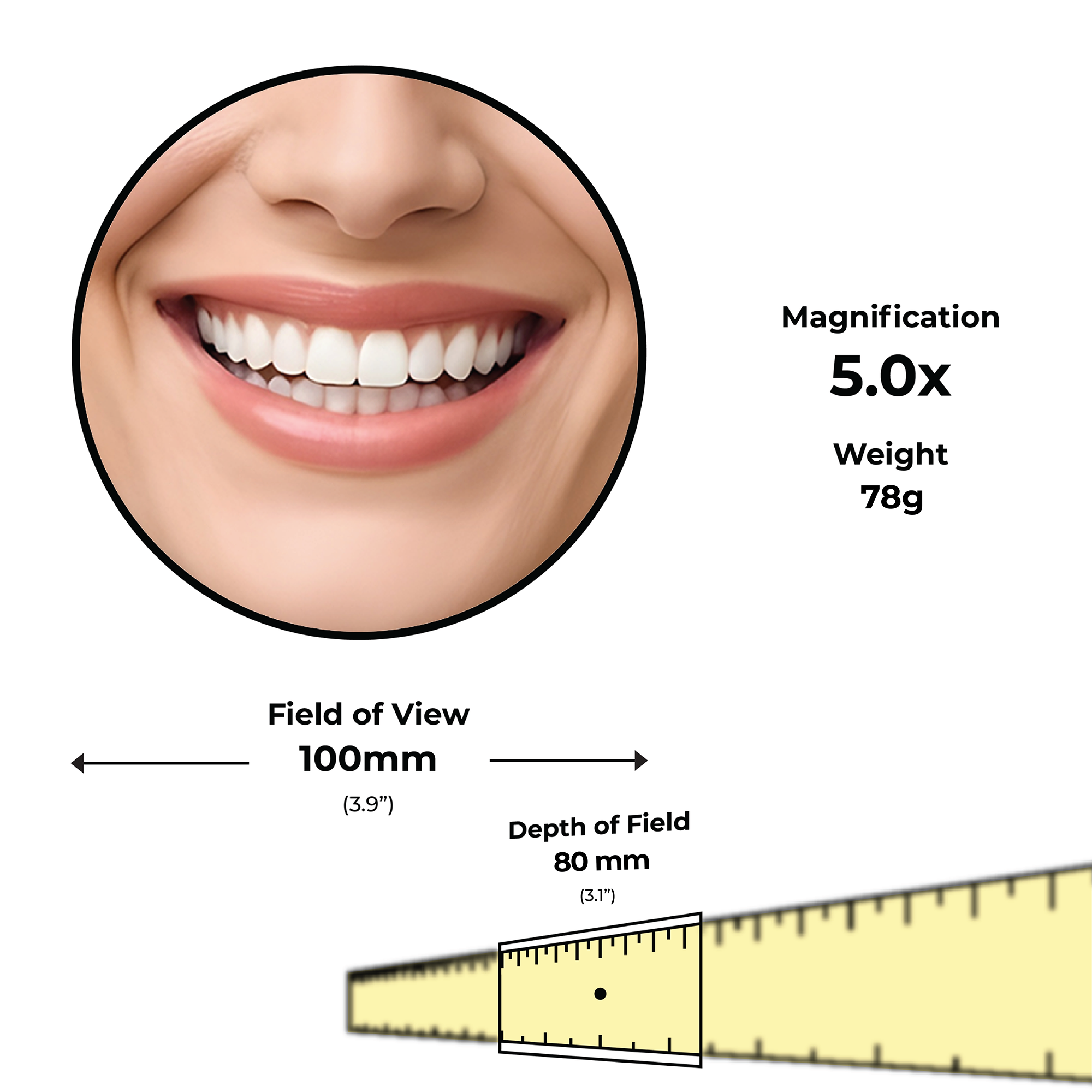

5.0x Magnification

Field of View (at 21"): 100 mm (3.9")
Depth of Field (at 21"): 80 mm (3.1")
Vario WD™: Yes
Weight (Carbon 3 Petite Frame): 78 g
Weight (Classic Frame): 91 g

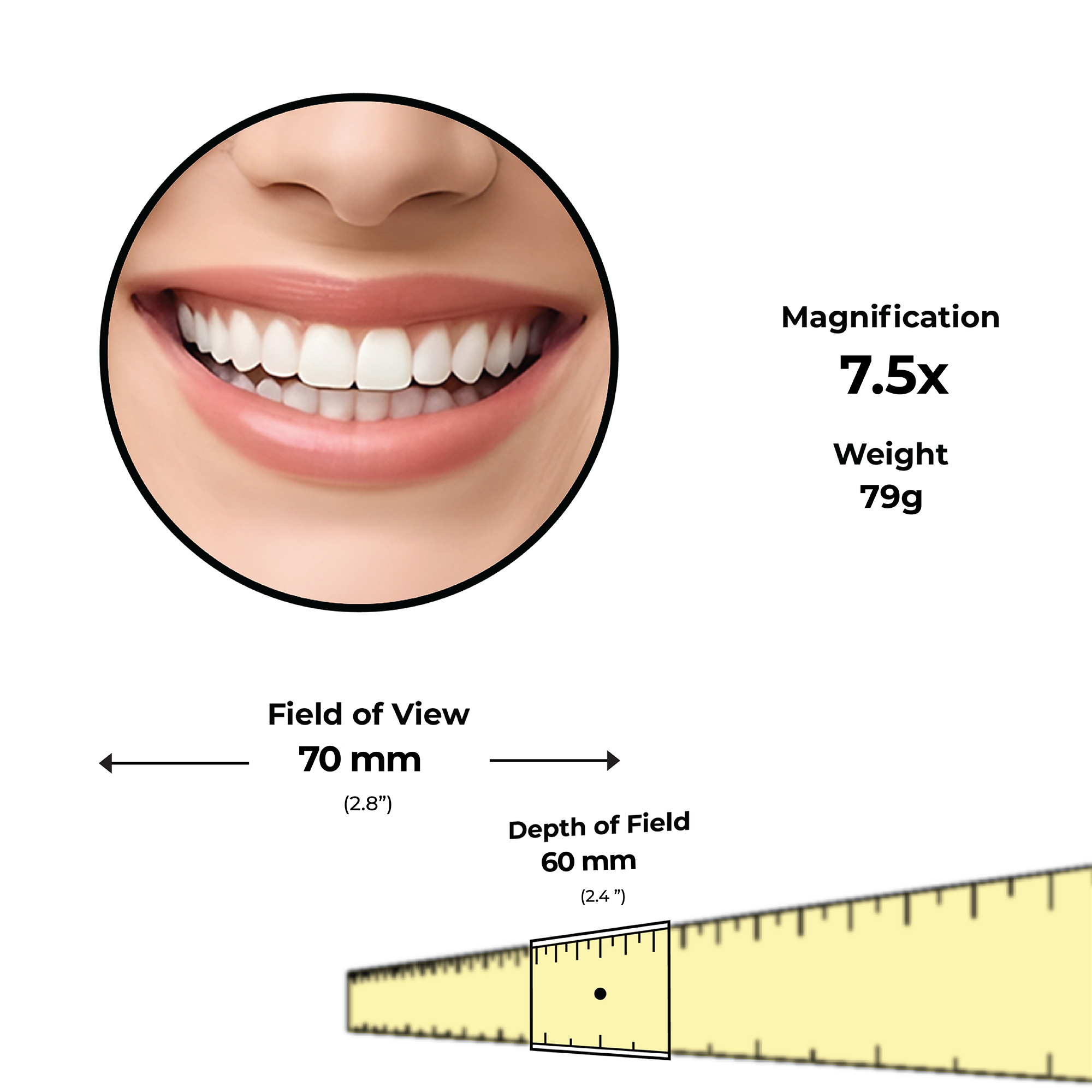

7.5x Magnification

Field of View (at 21"): 70 mm (2.8")
Depth of Field (at 21"): 60 mm (2.4")
Vario WD™: Yes
Weight (Carbon 3 Petite Frame): 79 g
Weight (Classic Frame): 92 g

Q&A

Q: Can the Ergo Max loupes replace a surgical microscope for procedures like neurosurgery or ophthalmology?
A: While the Ergo Max TTL Loupes offer high magnification of up to 10.0x and a wide field of view, they are designed to complement—not replace—surgical microscopes. Procedures requiring extreme magnification and advanced depth perception still rely on a microscope. However, Ergo Max loupes enhance visualization and ergonomics for many dental and surgical applications, reducing the need for constant microscope use.

Q: Why are the frame options for Ergo Max limited?
A: To support both high magnification and a wide field of view, Ergo Max loupes require frames that provide exceptional stability and durability. Only select frames meet these standards, as third-party options may increase the risk of misalignment or damage.

Q: How should I clean my loupes?
A: Clean the lenses with a microfiber cloth and a lens-safe cleaning solution. Avoid abrasive materials and alcohol-based products, as they can damage the lens coatings. For best results, Optim-1 cleaning wipes are recommended.
