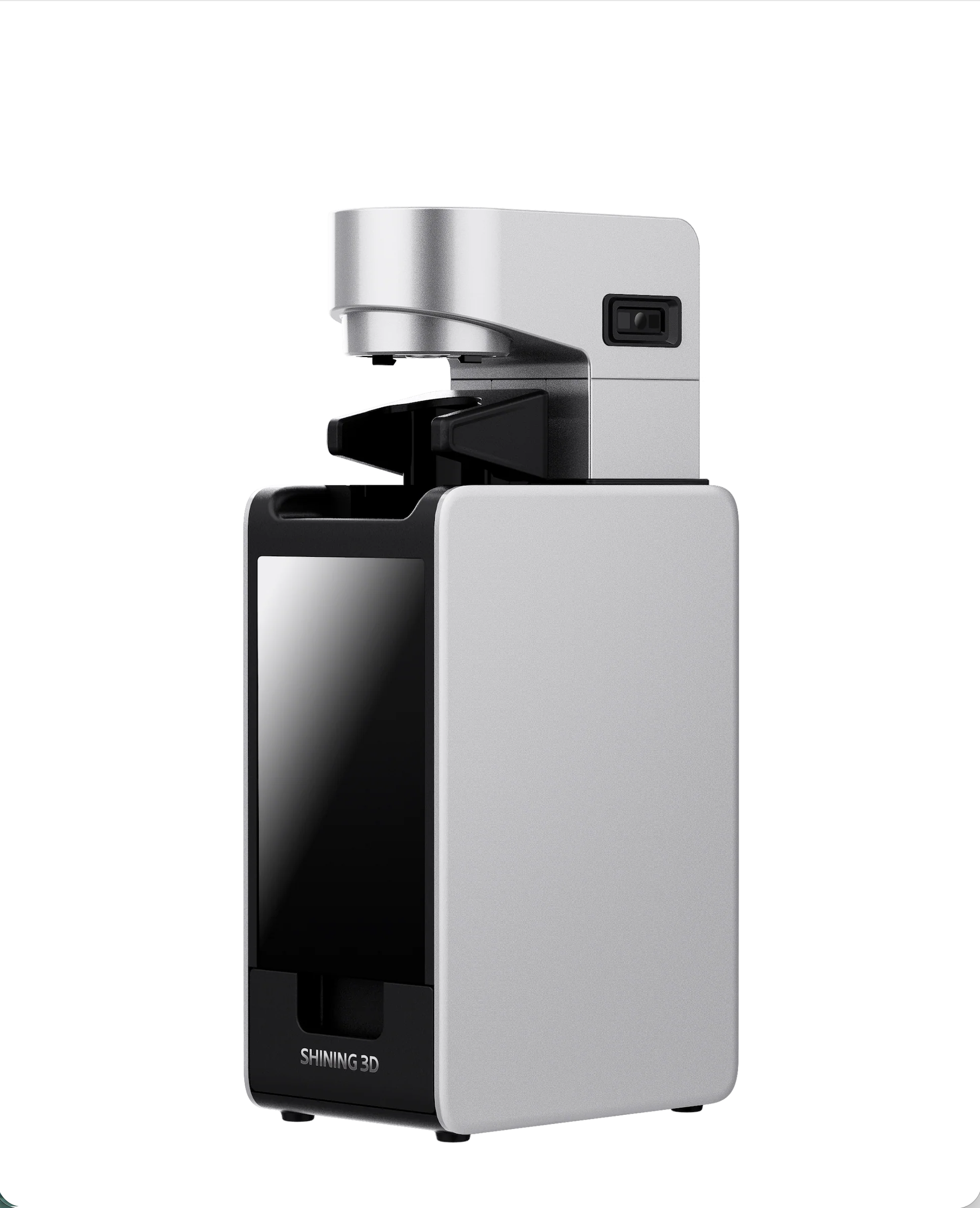

The SHINING 3D Ceramix-Nano is an ultra-compact capsule 3D printer designed for chairside fabrication of permanent ceramic restorations. Integrating high-precision printing and on-machine curing into a single 2 kg device, Ceramix-Nano streamlines the digital workflow from intraoral scan to final restoration.

Powered by SHINING 3D's patented APS (Adaptive Pneumatic Stereolithography) technology, Ceramix-Nano produces highly accurate ceramic restorations while reducing printing time to as little as 8 minutes for a single crown. When combined with SHINING FLOW AI Design, clinicians can complete a permanent restoration in under 30 minutes—all within a single appointment.

Technical Specifications

SpecificationDetails
TechnologyAPS (Adaptive Pneumatic Stereolithography)
Optical EngineDLP
Wavelength405 nm
XY Resolution50 ÎĽm
Print Time8–11 minutes (single crown)
Total Fabrication TimeApproximately 15 minutes (print + cure)
Dimensions87 Ă— 131 Ă— 276 mm
Weight2 kg
Auto LevelingCalibration-free automatic leveling
Curing Size50 Ă— 40 Ă— 20 mm
Curing Time≤3 minutes
Light Intensity200 mW/cm²
Maximum Curing Temperature80°C
Curing Wavelength360–385 nm

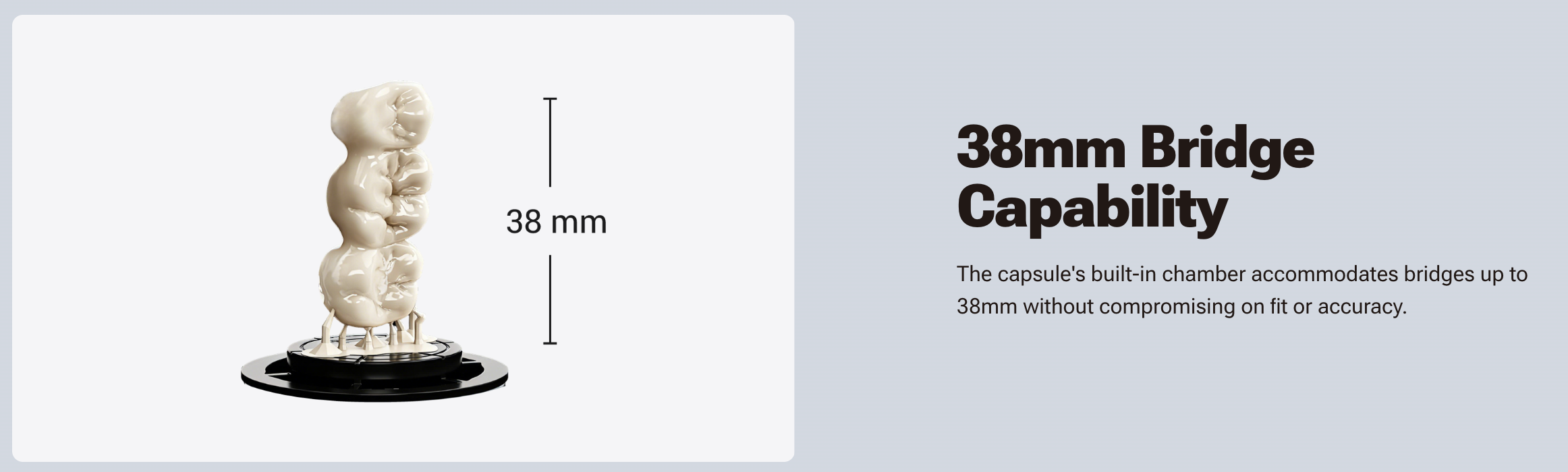

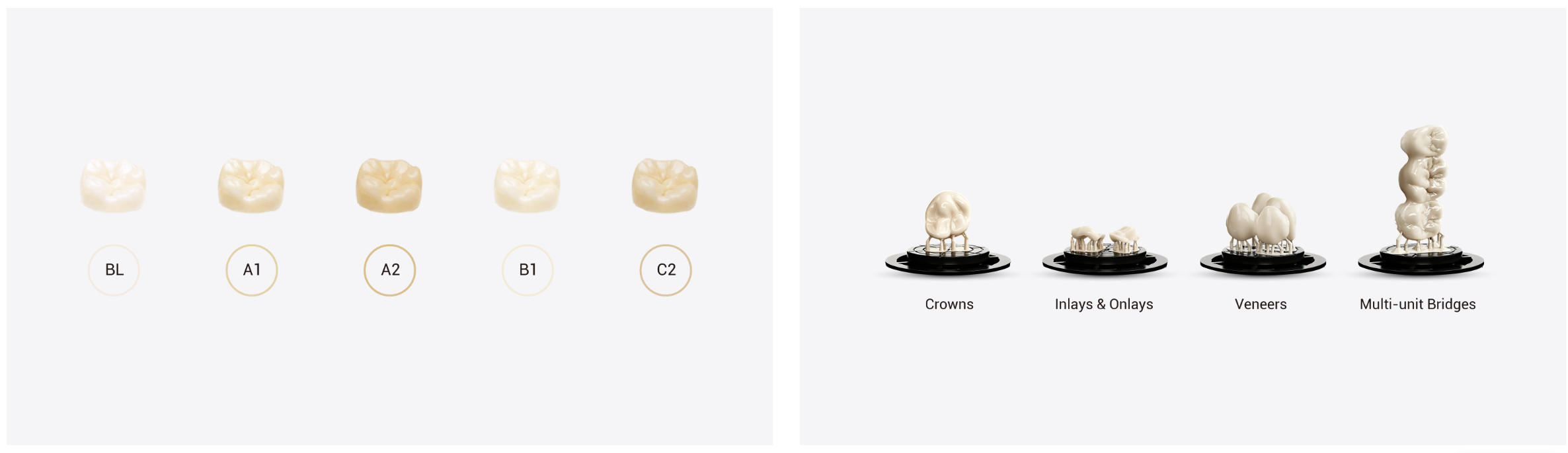

Clinical ApplicationsCrowns, Bridges (up to 3 units), Veneers, Inlays, Onlays
WorkflowSHINING FLOW Cloud Integration
Power Bank CompatibleYes (20 V / 5 A / 100 W minimum recommended)
